Description

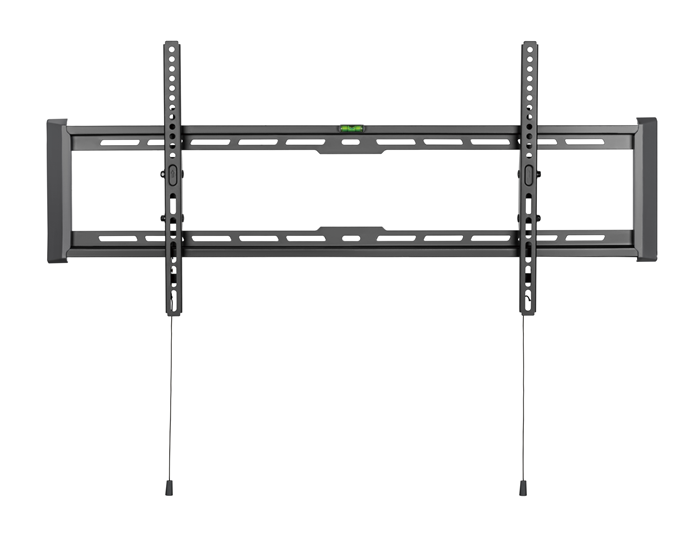

BrateckUltra-Slim and Heavy-Duty TV Wall Mount For 43′-90′ up to 75KG, VESA 200×200,300×200,400×200,300×300,400×300,400×400,600×400,800×400 Black
FEATURES:
●Free-Tilting Design: makes easy forward or backward adjustment for better viewing and reduced glare
●Heavy-Duty Construction: provides extra strength and durability
●Automatic Spring Locks with Quick Release Cords: allow TV removal quick and easy
●Decorative Covers: for a more elegant look
●Ultra-slim design
●Leveling adjustments: allow TV to be perfectly positioned after hanging
●Magnetic Strap End: hides itself when not in use.
●Bubble level included
SPECIFICATIONS
Product Category: Tilt TV Wall Mount
Rank: Standard
Material: Steel, Plastic
Metal Sheet Thickness: Bracket Arm THK=1.5mm cold-rolled sheet,Wall Plate THK=1.5mm cold-rolled sheet (Bracket Arm THK=0.059′ cold-rolled sheet,Wall Plate THK=0.059′ cold-rolled sheet)
Surface Finish: Powder Coating
Color: Matte Black
Dimensions: 47x970x430mm (1.9’x38.2’x16.9′)
Fit Screen Size: 43′-90′
Fit Curved TV: Yes
Mounting Hole Pattern: VESA & Universal
VESA Compatible: 200×200,300×200,400×200,300×300,400×300,400×400,600×400,800×400
Max. Mounting Hole: 868×405
Weight Capacity: 75kg (165lbs)
Strength Tested: 4 Times Approved
Profile: 47mm (1.9′)
Screen Level: 8mm
Tilt Range: +4°~-10°
Screen Level: 8mm
Screen Freely Tilting: No
Installation: Solid Wall,Double Stud(406mm/450mm/600mm)
Panel Type: Detachable Panel
Wall Plate Type: Fixed Wall Plate
Direction Indicator: Yes
Bubble Level: Hook-on Bubble Level(Included in Components Package)
Accessory Kit Package: Normal/Ziplock Polybag,Compartment Polybag
