Description

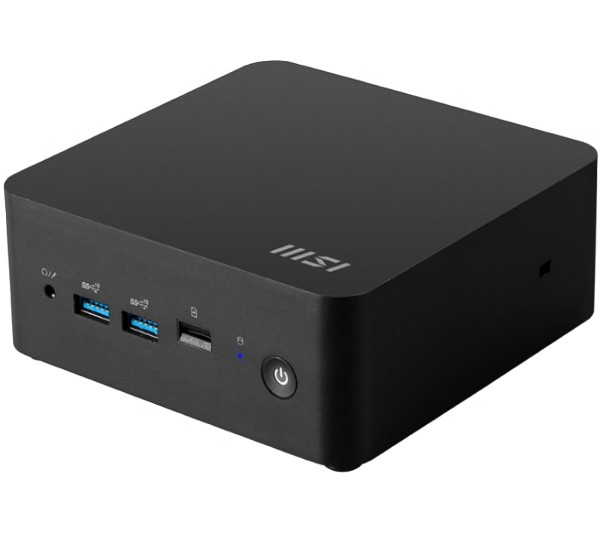

MSI Cubi NUC 1M-016BAU miniPC barebone, Black, Core 5-120U/Up to DDR5//max64GB/2*M.2/2*HDMI/2*TBT/2*LAN/Wifi6E/Card Reader/Switch Cable/3Y
SPECIFICATION
Chipset Soc
Memory
Module Type SO-DIMM
Memory Slot(Total) 2
Memory Slot(Free) 2
Max Capacity Max 64GB
Processor
CPU Number Intel Core 5 Processor 120U
CPU Clock 1.4GHz
CPU Cores 10
TDP 15W
Max Turbo Frequency up to 5.00 GHz
Cache 12 MB Intel® Smart Cache
Threads 12
Audio
Audio Chipset Realtek ALC256
Audio Type 2.1 Channel HD Audio
Storage
M.2 slots(Total) 2
M.2 slots(Free) 2
2.5′ Drive Bays(Total) 1
2.5′ Drive Bays (Free) 1
Communications
WLAN Version Wi-Fi 6E+BT
BT Version 5.3
I/O Ports (Side)
USB 3.2 Gen 2 Type A (R) 2
RJ45 2
HDMI out 2x (v2.0)
Warranty 36months
Dimension & Weight
Weight (Net kg) 0.625
Weight (Gross kg) 1.45
Product Dimension (WxDxH) (mm) 135.6 x 132.5 x 50.10
Product Dimension (WxDxH) (inch) 5.34 x 5.22 x 1.97
Inside Carton Dimension (WxDxH) (mm) 205 x 220 x 94
Inside Carton Dimension (WxDxH) (inch) 8.07 x 8.66 x 3.7
Net Weight (lbs) 1.38
Gross Weight (lbs) 3.2
VESA
VESA size 100 x 100 mm
Regulatory Compliance
Regulatory Compliance FCC(Class B), CB/CE, UL(CUL), BSMI, VCCI, RCM(C-Tick)
